Ribbon Bonding Wedges

JXL provides a diverse selection of Ribbon bonding wedge solutions that are suitable for a range of bonding equipment, including Manual, Semi-Automatic, and Automatic systems. These solutions are engineered to meet various operational needs, ensuring compatibility with different levels of automation and precision requirements. Whether you are looking for wedges to enhance manual processes, improve the efficiency of semi-automatic systems, or integrate seamlessly with fully automatic bonding equipment, JXL's offerings are designed to deliver optimal performance. Our comprehensive range ensures that you can find the right wedge solution tailored to your specific bonding application and equipment configuration.

product details

Description

There are at least three material options to choose from, including Tungsten Carbide, Titanium, and Ceramic. Among these, we particularly endorse Ceramic material and the Cross-groove tip for achieving optimal outcomes. Ceramic is favored for its superior durability and performance in demanding applications. For comprehensive details regarding our A8D feature on Ribbon Bonding Tools, please refer to the Tool Options-2 section within the Tool Options page. The tools displayed in this gallery represent standard configurations designed to meet general needs. Should you have specific requirements or need customized tool solutions tailored to your unique applications, please do not hesitate to get in touch with us for personalized assistance.

If you need to purchase RIBBON BONDING WEDGES, feel free to contact us. We have stock of our standard wedges, and we can also provide a design for custom wedges within three days and ship them out within a few days.

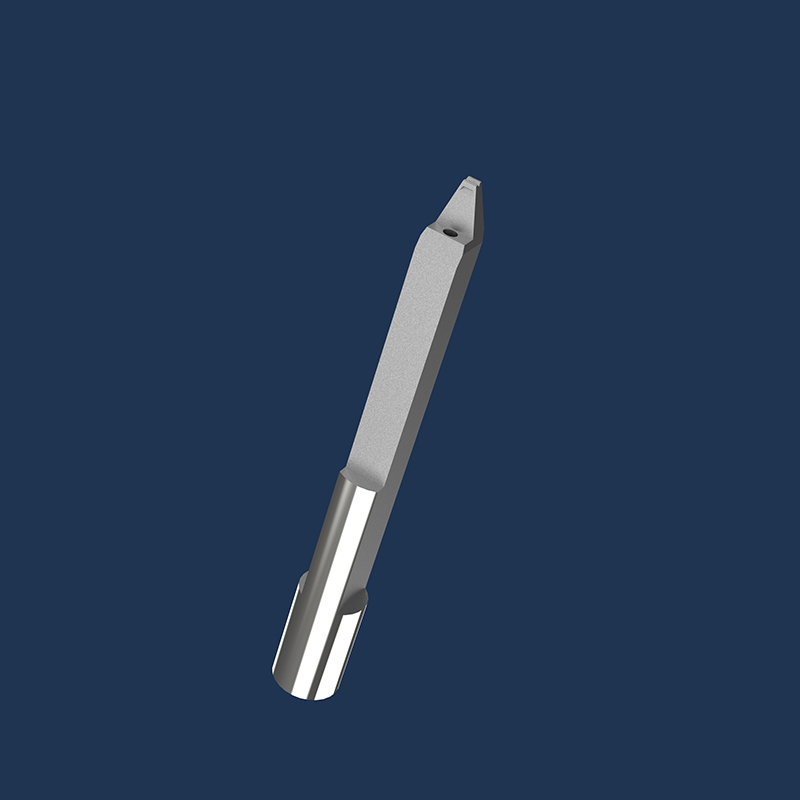

RW Ribbon Wire Bonding Wedge Tools

Ribbon wire bonding is often employed to enhance energy efficiency and power management in power devices, particularly those that handle higher currents and require lower resistance. The ribbon wire bonding tools are designed similarly to the M series bonding tools but feature a horizontal slot instead of the traditional round wire feed hole. This slot is custom-configured to accommodate the dimensions of the ribbon, with thicknesses ranging from .00025”/6.4µm to .0020”/51µm and widths from .0020”/51µm to .0200”/508µm. This customization ensures that the bonding tools are precisely suited to the ribbon's specific requirements, optimizing performance and reliability in high-power applications.
