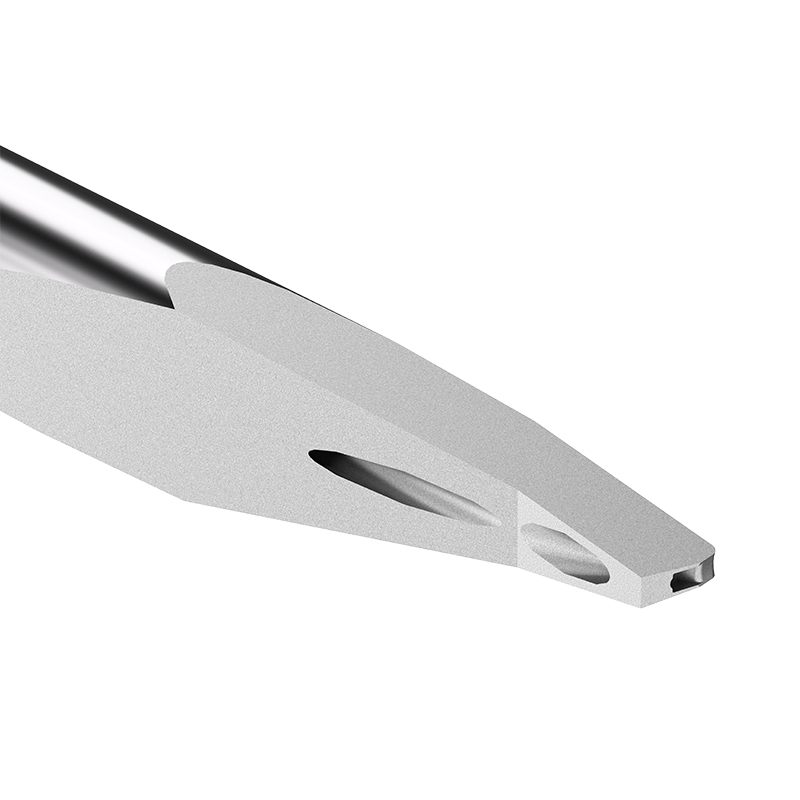

Large Wire Bonding Wedges By JXL
Description
Choose from a minimum of three material options: Tungsten Carbide, Titanium, and Ceramic. Applications involving Large Wire typically involve wire diameters of .003” (75 um) and larger, and commonly use Au, Al, Cu, and Pt. The CL style with a VG foot is primarily utilized for automatic applications, while the CS style with a GW foot is most commonly used for manual applications. Vertical Feed wedges are also available as needed.
If you need to purchase standard small wire bonding wedges or require custom wedges, feel free to contact us. We have stock of our standard wedges, and we can also provide a design for custom wedges within three days and ship them out within a few days.
Large wire bonding wedges are an essential component in semiconductor packaging and assembly processes. These wedges are used in wire bonding machines to form the critical electrical connections between semiconductor chips and the package or substrate. The larger size of these wedges may be necessary for specific applications or requirements in semiconductor manufacturing, such as for high-powered devices or specialized packaging techniques. The precise design and dimensions of these large wedges are crucial in ensuring the integrity and performance of the wire bonding process, and they play a vital role in the reliability and functionality of semiconductor devices.
When purchasing large wire bonding wedges, customers should exercise caution to ensure they are acquiring the right product for their specific needs. Here are some factors to consider:
Compatibility: Ensure that the large wire bonding wedges are compatible with the wire bonding equipment and machinery being used. This includes confirming the dimensions, material, and other specifications to ensure proper fit and performance.
Quality and Reliability: Verify the quality and reliability of the large wire bonding wedges, as these components play a critical role in the integrity of the wire bonding process. Look for products from reputable manufacturers with a track record of producing high-quality bonding wedges.
Material and Coating: Consider the material composition and any coating or plating on the wedges. Different materials and coatings offer various benefits such as enhanced durability, conductivity, and reliability. Select the material and coating that align with the application requirements.
Performance Specifications: Understand the performance specifications of the large wire bonding wedges, including parameters such as bonding force, hardness, and thermal properties. These specifications should meet the specific requirements of the bonding process and the semiconductor materials being used.
Technical Support and Service: Evaluate the availability of technical support and after-sales service from the supplier. Having access to knowledgeable support can be valuable for troubleshooting, training, and ongoing assistance with the use of large wire bonding wedges.
Cost and Value: Consider the overall cost of the large wire bonding wedges in relation to their quality, performance, and reliability. While price is a factor, it's essential to prioritize value and long-term benefits over simply choosing the lowest-priced option.
