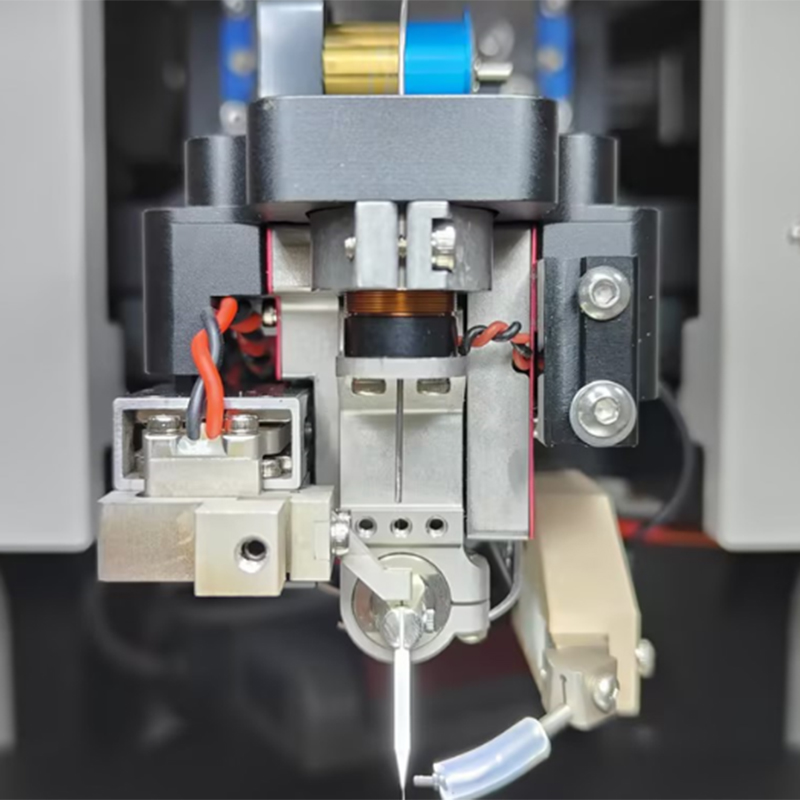

Jxl3001b - Manual And Semi-Auto Ball Bonder Wire Bonder
MANUAL and SEMI-AUTO BALL BONDER Features:
♦Fix loop height, fix loop length, automatic loop forming, improving loop consistency
♦Real-time monitoring of bonding to effectively ensure the quality of bonds
♦Easy switching of manual/semi-automatic functions, flexible and convenient, and better product compatibility
♦The ball shaped perfectly without tail/BSOB/BBOS/adding ball position/pad ball position can be set online and automatically aligned
♦Automatic tail retention and automatic ignition, no need to lift the handle to ignite, higher efficiency
Advantage
1.Advantage - Adaptability
♦High-efficiency ultrasonic transduction system, so the bonded ball is well shaped
♦Platform wire breakage mode can avoid virtual bonding

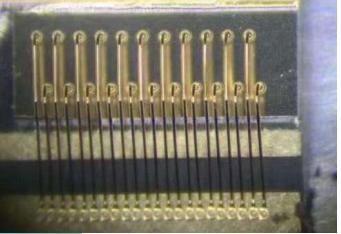

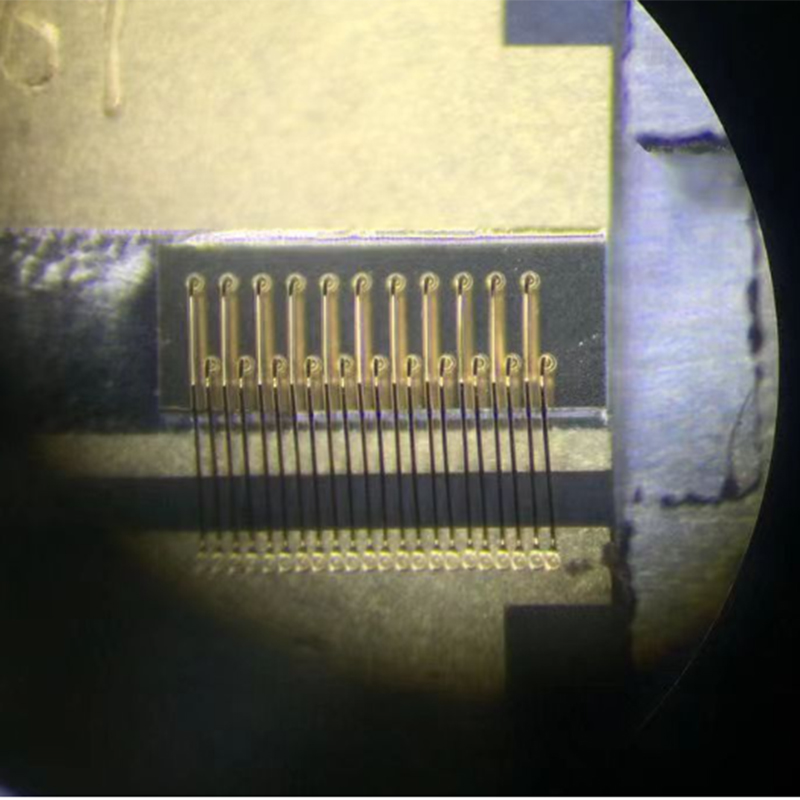

♦Ball with no tail/BBOS/BSOB automatically completed
♦Segmented bonding can adapt to the uneven chips or inclined chip surface
2.Advantage - Stability
♦With the coordinated action of the wire clamp, it is super easy for the operator to start a loop
♦By optimizing the reversal height and reversal distance, long loop of more than 3mm can be achieved
3.Advantage - Consistency
♦Real-time monitoring of bond formation to ensure quality and high consistency
Graphical display of bond deformation
♦With the automating aligning function, operator only needs to make the first loop and the remaining will be automatically completed, which is highly efficient
MANUAL and SEMI-AUTO BALL BONDER Parameters
XYZAxis |
Bonding Force |
14mm*14mm*15mm(Can be customized to28mm*28mm*30mm) |
10-250g accuracy 0.1g, online programmable |
Wire Diameter |
Ultrasonic Power |
Gold wire 18-50um Platinumwire 18-25um |
0-5W |
Cavity Depth |
Device Size |
Up to 12mm;Compatible with 16/19mm ball bonding capillary |
Compatible with 200mm or bigger |
Wire Spool |
Liftable Operating Table |
Compatible with both 1/2" and 2" wire |
250mm*250mm*18mm |
Dimensions |
Weight |
800mm width*550mm depth*500mm height |
70kg |
Power Supply |
Compressed Air |
|
AC220V±10%@50HZ,10A Smaller than 400W |
>0.2MPa, flow rate>50LPM Purify air source |
